Bobcat Digger Information

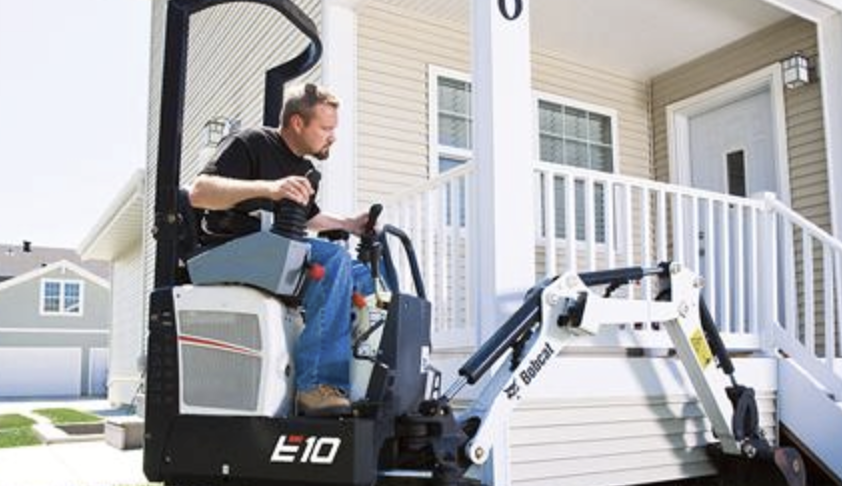

Bobcat E10 Compact Excavator

The ultra-compact Bobcat® E10 compact (mini) excavator, with a retracted track width of 28 in., can access jobsites where arduous hand labour is the only other choice. You can simply manoeuvre through smaller holes and work in tighter spaces. Zero Tail Swing provides the most slew and spoil deposit flexibility while also providing the most protection from jobsite impediments.

Horsepower - 10.2 hp
Optional Horsepower n/a
Operating Weight 2,593 lb
Bucket Digging Force 1,865 lbf
Maximum Reach at Ground Level 10.2 ft
Width 28 in
Tail Swing Type Zero

Bobcat E20 Compact Excavator

With minimal adjustment, the Bobcat® E20 tiny (mini) excavator performs admirably in narrow spaces. Hydraulically retract the undercarriage to 39 inches to pass through gates or between houses, then expand to 54 inches for a larger footprint and improved performance. On the tightest job locations, zero tail swing provides you more agility.

Horsepower 13.9 hp
Optional Horsepower n/a
Operating Weight 4,306 lb
Bucket Digging Force 4,684 lbf
Maximum Reach at Ground Level 14 ft
Width 39 in Tail Swing Type Zero
Tail Swing Type Zero


Bobcat E32 Compact Excavator

The Bobcat® E32 compact (mini) excavator is part of the R-Series and features a traditional tail swing design with tremendous performance and mobility. This machine is narrower than the E35 and is perfect for working around width limits such as doors or gates. The long arm option or a clamp-ready extensible arm option will enhance your working range.

Horsepower 24.8 hp
Optional Horsepower n/a
Operating Weight 7,340 lb
Bucket Digging Force 6,969 lbf
Maximum Reach at Ground Level 16.3 ft
Width 61 in
Tail Swing Type Conventional

Bobcat E35 Compact Excavator

In the 3-ton size class, the Bobcat® E35 compact (mini) excavator is a popular choice. Zero Tail Swing (ZTS) allows for unfettered rotation, more flexibility, and less risk of harm to the machine and its surroundings. This R-Series excavator can be equipped with an angle blade, a long arm, or a clamp-ready extensible arm.

Horsepower 24.8 hp
Optional Horsepower n/a
Operating Weight 7,699 lb
Bucket Digging Force 6,968 lbf
Maximum Reach at Ground Level 17.2 ft
Width 69 in
Tail Swing Type Zero

Bobcat E42 Compact Excavator

The E42 compact (mini) excavator has better hydraulic performance, efficiency, and control, allowing you to push the boundaries and take on more complicated jobs. The E42 excavator is part of the R2-Series and has a new Bobcat® engine that improves performance, reduces maintenance, and increases uptime. Configure it with the optional long arm or extended arm to improve the depth of your dig and reduce the number of times you have to reposition the machine. Low-effort joysticks that respond quickly to operator input are standard, as is an enhanced cooling system to control engine compartment temperature and a larger, more durable slew bearing. For level grading, an optimised hydraulic control valve provides improved metering, finite movement, and controllability. Furthermore, the traditional tail swing is well-balanced for enhanced lift capacity and operator confidence. For optimal visibility and efficiency, other choices include a cutting-edge touch display, an angle blade, and a rear camera.

Horsepower 42.6 hp
Optional Horsepower n/a
Operating Weight 9,830 lb
Bucket Digging Force 9,601 lbf
Maximum Reach at Ground Level 17.3 ft
Width 72.8 in
Tail Swing Type Conventional

Bobcat E50 Compact Excavator

With greater hydraulic performance, improved efficiency, reduced maintenance, and more precise control, the powerful Bobcat E50 Compact Excavator small (mini) excavator helps you push the limits of productivity. This R2-Series excavator comes standard with a redesigned Bobcat® engine, as well as an improved cooling system to improve performance, serviceability, and component life; low-effort joysticks that respond quickly to operator input; hydraulic control for better metering, finite movement, and controllability on level grading; and fast cycle times. The excavator also has a little tail swing (less than one inch of overhang) to make working in tight spaces easier. It can also be equipped with a long arm to enhance dig depth and reduce repositioning frequency. A state-of-the-art touch display, automatic heat and air conditioning, a rearview camera, and an angle blade are among the available options.

Horsepower 49.7 hp
Optional Horsepower n/a
Operating Weight 11,357 lb
Bucket Digging Force 9,511 lbf
Maximum Reach at Ground Level 19.4 ft
Width 77.2 in
Tail Swing Type Minimal

Bobcat E60 Compact Excavator

With the flexible E60 compact excavator, you can take your productivity to new heights – and lengths. This 6-ton small excavator has the hydraulic and engine horsepower to undertake aggressive digs and more difficult lifts, and the extension arm option takes it even further.

Horsepower 55 hp
Optional Horsepower n/a
Operating Weight 12,315 lb
Bucket Digging Force 10,261 lbf
Maximum Reach at Ground Level 20.5 ft
Width 77.2 in
Tail Swing Type Conventional

Bobcat E88 Compact Excavator

The new Bobcat® R2-Series E88 Compact Excavator offers enormous performance in a little package, thanks to a revised engine, improved lift performance, and undercarriage and counterweight upgrades that make it one of the best-performing excavators in its size class. Owners and operators seeking industry-leading lift capability will find it – and then some – within the new Bobcat E88's compact size. This 8-ton compact excavator offers remarkable over-the-side lift capabilities thanks to its dual-flange track rollers, integrated counterweight, and additional machine weight. Dig with more confidence over the machine's side, and let its superb slewing ability help you increase your production. The E88's low-effort joysticks and innovative hydraulic control valve put you in charge of every machine movement, giving you the ultimate in precision. The redesigned hydraulic control valve improves metering for smooth controllability, natural, finite workgroup movement, and excellent joystick feedback. For effective digging, level grading, and other tasks, operators will benefit from precise and predictable operation, as well as quick cycle times. Add extras like an add-on counterweight, the Bobcat depth-check system, a Machine IQ subscription, a rear-view camera, a widescreen touch display, and a heated, high-back seat with backrest to maximise the E88's potential.

Horsepower 65 hp
Optional Horsepower n/a
Operating Weight 19,600 lb
Bucket Digging Force 15,130 lbf
Maximum Reach at Ground Level 23.7 ft
Width 86.6 in
Tail Swing Type Conventional

Bobcat E145 Large Excavator

The 115-hp Bobcat® E145 large excavator in the 14 – 16 ton size class, is ideal for roadways, railroad, bridges and infrastructure, commercial and urban jobsites. It delivers leading lift capacity, four power modes and fast cycle times. An ideal combination of machine weight, power and capacity takes performance in heavy digging and lifting operations to the next level. The reduced tail swing allows for greater maneuverability in tight jobsites, so you can confidently work around obstacles or against walls. Class-leading hydraulics provide reliable, steady power to the E145 excavator work group, saving time with every digging cycle. More slewing torque means more power for slewing uphill, backfilling and all-around better productivity. The E145 large excavator offers a variety of comfort features, including generous floor space, a pressurized cab with sound-isolating seal, heated seat and automotive-style heating and air conditioning. This machine is easy to service with wide-open access panels, a hinged belly pan and centralized grease banks to make essential daily maintenance quick and easy. Side and rearview cameras are standard on the E145 excavator.

Horsepower 115 hp
Optional Horsepower n/a
Operating Weight 34,987 lb
Bucket Digging Force 21,471 lbf
Maximum Reach at Ground Level 27.9 ft
Width 101 in
Tail Swing Type n/a

Bobcat E165 Large Excavator

The turbo-charged Bobcat® E165 large excavator provides optimized performance for heavy digging and lifting operations. Class-leading hydraulics give operators reliable power to save time with every digging cycle, while wide-open access panels, a hinged belly pan and centralized grease banks make essential daily maintenance quick and easy. The E165 offers a conventional tail swing that delivers leading lift capacity, so you can pick and place heavy items with ease. Operators also benefit from four power modes and fast cycle times, while side and rear view cameras come standard. This 131-hp excavator, in the 16- to 18-ton size class, is ideal for roadways, railroads, bridges, infrastructure and commercial and urban jobsites. Plus, more slewing torque means increased power for slewing, backfilling and all-around better productivity. Comfort features, including a pressurized cab with sound-isolating seal, heated seat and automotive-style heating and air conditioning, keep you comfortable and productive during even the longest workdays.

Horsepower 131 hp
Optional Horsepower n/a
Operating Weight 38,376 lb
Bucket Digging Force 25,794 lbf
Maximum Reach at Ground Level 28.8 ft
Width 102 in
Tail Swing Type n/a
